Limited Edition
2.7L Turbo Diesel
3500 LB
144 LB-FT
Limited Edition
2.7L Turbo Diesel
3500 LB
144 LB-FT
| ROXOR | Financing | Customer Rebate |
|---|---|---|
| Non-HD Base & Cab | 0% up to 60 months 2.99% 61 - 72 months 3.99% 73 - 84 months |
$3,000 |
| 2023 HD Models Base & Cab | 0% up to 60 months 2.99% 61 - 72 months 3.99% 73 - 84 months |
$3,000 |
| 2024 HD Models Base & Cab | 0% up to 48 months 1.99% 49 - 60 months 2.99% 61 - 72 months 3.99% 73 - 84 months |
$3,000 |

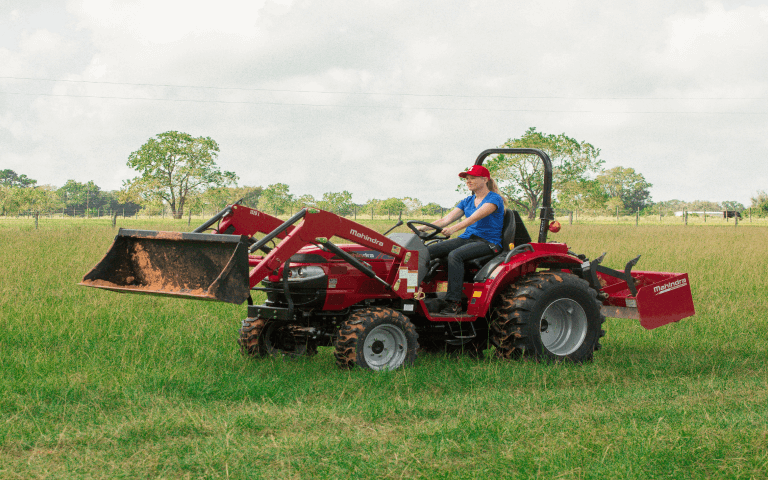

The eMax series redefines the sub-compact tractor market with powerful performance and impressive lift capacities. With an extensive selection of versatile attachments and implements, plus a remarkable turning radius, they are ideal for both homeowners and professionals alike.
Enjoy advantages like lower operating RPM, extended engine life, quieter operations, increased hauling capacity, and excellent fuel efficiency.
With our independent PTO, effortlessly engage and disengage your power take-off . Say goodbye to complex and time-consuming operations – the eMax streamlines your work, making your tasks easier and more efficient.
Our thoughtfully designed operator station boasts an easy to view instrument panel, and ergonomic pedal and lever placements. Plus, the mComfort seat invites you to tackle long work days with ease.
Tight working conditions? No problem! Our eMax Series tractors offer a short turning radius, enabling you to effortlessly navigate compact areas.
Equipped with our Ag, Industrial, or Turf tires and featuring high built-in weight, eMax series tractors provide unmatched traction and steadiness.
The standard loader comes with skid-steer, quick-attach couplers ensuring swift and hassle-free front attachment saving you valuable time and effort.
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Wheelbase | 96” / 244 cm | 96” / 244 cm |
| Base Curb Weight | 3075 lb / 1395 kg | 3415 lb / 1549 kg |
| Length | 144” / 366 cm | 144” / 366 cm |
| Width | 60.7″ / 154 cm | 60.7″ / 154 cm |
| Height | 75”/ 191 cm | 77”/ 196 cm |
| Ground Clearance | 9” / 22.86 cm | 9” / 22.86 cm |
| Fuel Capacity | 16 gal / 60.5 L | 16 gal / 60.5 L |
| Payload Capacity | 1525 lb / 692 kg | 1185 lb / 538 kg |
| GVWR | 4600 lb / 2087 kg | 4600 lb / 2087 kg |
| Towing Capacity | 3500 lb / 1588 kg @ 15 mph | 3500 lb / 1588 kg @ 15 mph |
| Person Capacity | 2 | 2 |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Type | Four-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine | Four-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine |
| Cylinders | 4 | 4 |
| Displacement | 2730cc (2.7L / 165 in³) | 2730cc (2.7L / 165 in³) |
| Bore & Stroke | 88.9 X 110.0 mm | 88.9 X 110.0 mm |
| Engine | 55 HP @ 2300 RPM (Max 2700 RPM) | 55 HP @ 2300 RPM (Max 2700 RPM) |
| Torque | 144 ft-lb @ 1400 rpm | 144 lb-ft @ 1400 rpm |
| Compression Ratio | 18.7 : 1 | 18.7 : 1 |
| Cooling System | Liquid | Liquid |
| Fuel System | Mahindra Common Rail Diesel (mCRD) | Mahindra Common Rail Diesel (mCRD) |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Max Speed | 55 mph | 55 mph |
| Max Towing Speed | 15 mph | 15 mph |
| Max Flat Towing Speed | 55 mph | 55 mph |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Chassis Type | Boxed Steel Frame | Boxed Steel Frame |
| Front Suspension | HD Leaf Spring w/ Shock Absorbers & Stabilizer Bar | HD Leaf Spring w/ Shock Absorbers & Stabilizer Bar |
| Rear Suspension | HD Leaf Spring w/ Shock Absorbers | HD Leaf Spring w/ Shock Absorbers |
| Tires | 235 / 70R16 All-Terrain | 235 / 70R16 All-Terrain |
| Wheels | 16 x 7 in Painted Steel | 16 x 7 in Polished & Painted Aluminum |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Transmission | 5-speed manual | 5-speed manual |
| Transfer Case | 2-speed manual with 2.41:1 | 2-speed manual with 2.41:1 |
| Driveline | 2WD / 4WD | 2WD / 4WD |
| Full Floating Front Axle | Full Floating w/5.38 : 1 Gear Ratio | Full Floating w/5.38 : 1 Gear Ratio |
| Semi Floating Rear Axle | Semi Floating w/5.38 : 1 Gear Ratio | Semi Floating w/5.38 : 1 Gear Ratio |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Protection | Roll-Over Protection System (ROPS) | Roll-Over Protection System (ROPS) |
| Seat Belts | (2) 3-point | (2) 3-point |
| Brakes | Hydraulic Power | Hydraulic Power |
| Parking Brake | Mechanical | Mechanical |
| Front Brakes | 11” Disc / 27.94 cm | 11” Disc / 27.94 cm |
| Rear Brakes | 11” Drum / 27.94 cm | 11” Drum / 27.94 cm |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Colors | Red , Black , Green | Red , Black , Green |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Steering | Hydraulic Assist | Hydraulic Assist |
| Storage | (2) lockable underseat boxes | (2) lockable underseat boxes |
| Interior Floor | ROXLINERTM | ROXLINERTM |
| Cargo Bed | ROXLINERTM | ROXLINERTM |
| Cargo Area Tie Downs | 8 Side Rail, 2 Floor | 8 Side Rail, 2 Floor |
| Cab Enclosure | NA | Composite |
| Climate Control (Heat & AC) | NA | Standard |
| Windshield | NA | Polycarbonate |
| Wipers | NA | Dual |
| Winch (with Mounting Plate) | NA | WARN 8,000 Lb |
| Bumper | Painted Steel | Powdered-coated HD |
| ROXPOWERTM (Patented) | NA | Standard |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Battery | 12V AGM | 12V AGM |
| Alternator | 90A | 90A |
| Power Outlet | 12-volt | 12-volt |
| Instrumentation | Digital Cluster | Digital Cluster |
| Headlights | Halogen | Halogen |
| Tailights | Low-Profile LED | Low-Profile LED |
| ROXOR Model | HD Base Model | HD All-Weather Model |
|---|---|---|
| Country of Assembly | USA | USA |
| Warranty | 2-Year Limited Warranty | 2-Year Limited Warranty |
