2638 HST
Horsepower 37.4 HP
Transmission HST
3-Point Hitch Lift Capacity 2646 lbs
Loader lift capacity 1634 lbs
Build Your Own Get A Quote

Save up to $2,500!

7-Year Limited Powertrain Warranty*

2645 Shuttle
Horsepower 44 HP
Transmission Shuttle
3-Point Hitch Lift Capacity 2646 lbs
Loader lift capacity 2041 lbs
Build Your Own Get A Quote

Save up to $2,500!

7-Year Limited Powertrain Warranty*

2660
Horsepower 60 HP
Transmission PST & HST
3-Point Hitch Lift Capacity 3314 lbs
Loader lift capacity 3122 lbs
Build Your Own Get A Quote

Save up to $2,500!

7-Year Limited Powertrain Warranty*

2670 PST Cab
Horsepower 70 HP
Transmission PST
3-Point Hitch Lift Capacity 3528 lbs
Loader lift capacity 3122 lbs
Build Your Own Get A Quote

Save up to $2,500!

7-Year Limited Powertrain Warranty*

Offers

Top Features

Implements

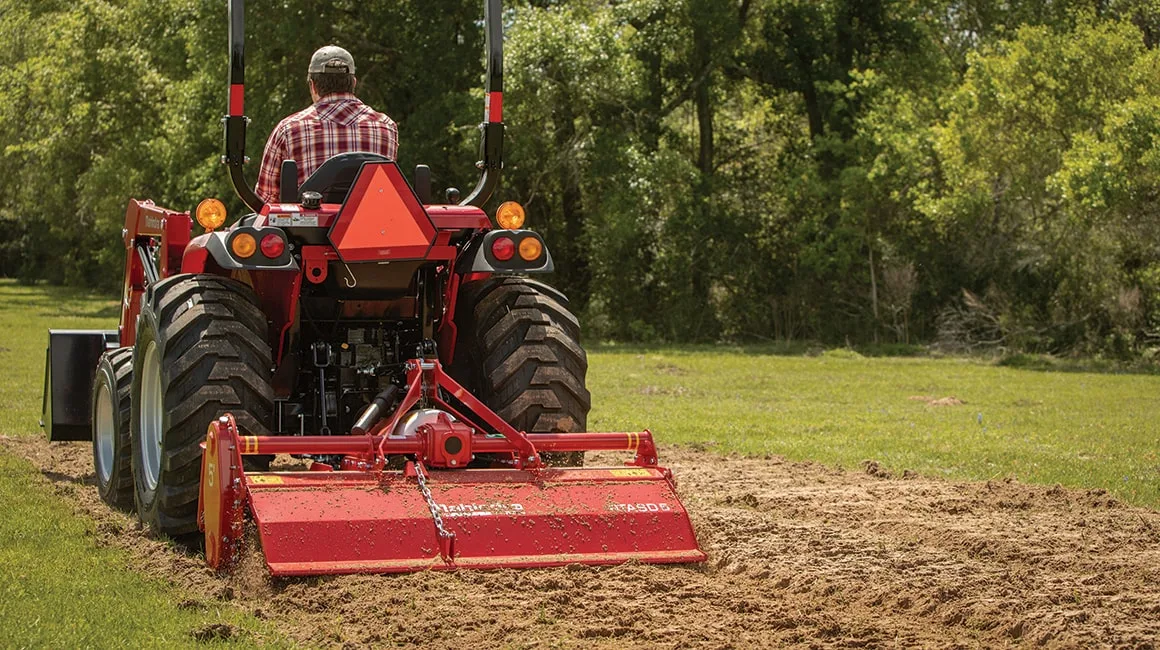

With value-packed features, Mahindra implements are built to be as tough as our tractors. We overbuild them for years of uninterrupted performance so you can focus on transforming your property into the land you love!

Attachments

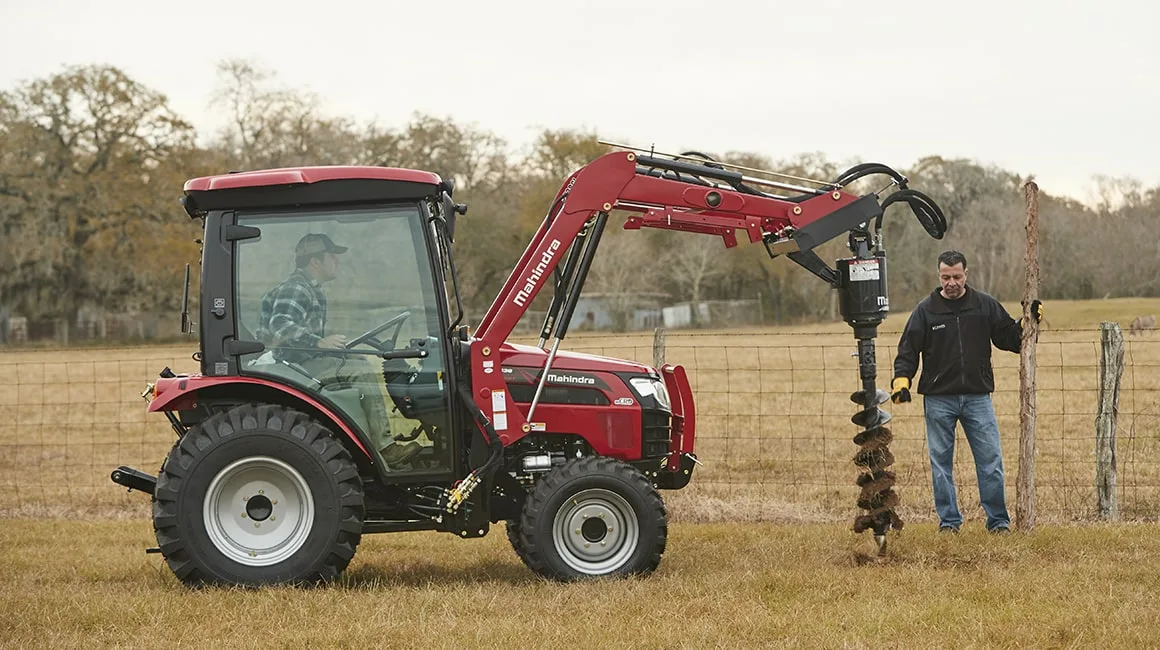

Like our tractors, Mahindra attachments are engineered to tackle the most demanding jobs. They add versatility, too. No need for a separate backhoe or a riding mower. We have every solution to meet your unique needs, all in one tractor.

Specs

Tractor Model2638 HST2638 HST Cab2645 Shuttle2660 HST Cab2660 PST2670 PST Cab

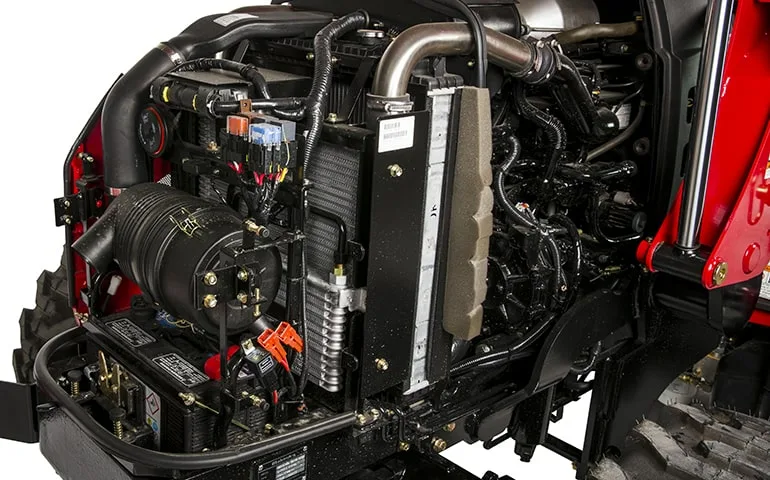

Engine type Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel EngineFour-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel EngineFour-stroke, Turbocharged, Direct Injection, Water Cooled Diesel EngineFour-stroke, Turbocharged, Direct Injection, Water Cooled Diesel EngineFour-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine
Engine HP [kW] @ RPM37.4 (27.5) @ 240037.4 (27.5) @ 240044 (33) @ 260060 (44.5) @ 230060 (44.5) @ 230070 (52) @ 2300
Displacement [in3 (cc)]166.7 (2732)166.7 (2732)166.7 (2732)161.7 (2650)161.7 (2650)161.7 (2650)
Number of cylinders444333
Fuel tank [Gal (L)]9 (34)9 (34)9 (34)16 (60.6)16 (60.6) 18.5 (70)
Bore & stroke [in]3.5 x 4.33.5 x 4.33.5 x 4.33.8 x 4.83.8 x 4.83.8 x 4.8

Tractor Model2638 HST2638 HST Cab2645 Shuttle2660 HST Cab2660 PST2670 PST Cab
Transmission type HST -3 RangesHST -3 RangesSync, shuttle with part synchromeshHST -3 RangesPower ShuttlePower Shuttle
Number of speeds InfiniteInfinite12F / 12RInfinite12F / 12R12F / 12R
ClutchDamperDamperDry Single PlateDamperDry Single PlateDry Single Plate
Max speed (mph)15151317.617.613
Brakes Wet Disc Brakes, Mechanical Wet Disc Brakes, MechanicalWet Disc Brakes, MechanicalWet Disc Brakes, MechanicalWet Disc Brakes, MechanicalWet Disc Brakes, Mechanical

Tractor Model2638 HST2638 HST Cab2645 Shuttle2660 HST Cab2660 PST2670 PST Cab
PTO typeIndependentIndependentIndependentIndependentIndependentIndependent
Rear PTO RPM 540 @ 2400540 @ 2400540 @ 2650540 @ 2300540 @ 2300540 @ 2300
Mid PTO RPM2000 @ 2500 (OPT)2000 @ 2500 (OPT)N/A2000 @ 2500 (OPT)N/AN/A
PTO HP (kW)31 (23.2)29.5 (22)36 (26.8)46.3 (34.5)48.5 (36.2)53.8 (40.1)

Tractor Model2638 HST2638 HST Cab2645 Shuttle2660 HST Cab2660 PST2670 PST Cab
TypeOpen CenterOpen CenterOpen CenterOpen CenterOpen CenterOpen Center
Maximum total flow [GPM (L/min)]11.7 (44.3)11.7 (44.3)12.7 (48.1)16.7 (63.2)16.7 (63.2)16.7 (63.2)
Total pump output, main (GPM)7.67.67.611.811.811.8
Total pump output, steering (GPM)4.14.14.14.94.94.9
3-Point hitchCAT ICAT ICAT ICAT I with Telescoping Stabilizers & Flex LinksCAT I with Telescoping Stabilizers & Flex LinksCAT II with Telescoping Stabilizers & Flex Links
3- Point hitch lift capacity @24" aft [lb (kg)]2646 (1200)2646 (1200)2646 (1200)3314 (1503)3314 (1503)3528 (1600)

Tractor Model2638 HST2638 HST Cab2645 Shuttle2660 HST Cab2660 PST2670 PST Cab
Battery12 V, 800 CCA12 V, 800 CCA12 V, 800 CCA12 V, 925 CCA12 V, 925 CCA12 V, 925 CCA
Alternator12 V, 90 A12 V, 90 A12 V, 90 A12 V, 90 A12 V, 90 A12 V, 90 A

Tractor Model2638 HST2638 HST Cab2645 Shuttle2660 HST Cab2660 PST2670 PST Cab
Overall length [in (mm)]119.3 (3030)119.3 (3030)119.3 (3030)138.8 (3525)138.8 (3525)144.4 (3667)
Wheelbase [in (mm)]67.7 (1719)67.7 (1719)67.7 (1719)73.7 (1871)73.7 (1871)83 (2100)
Overall width [in (mm)]63.2 (1605)63.2 (1605)63.2 (1605)71.1 (1805)71.1 (1805)71.5 (1817)
Overall height [in (mm)]94.4 (2400)94.4 (2400)94.4 (2400)102 (2590)102 (2590)102 (2590)
Minimum ground clearance [in (mm)]14.5 (370)14.5 (370)14.5 (370)14.5 (370)14.5 (370)15.7 (400)
Weight [lb (kg)]3130 (1420)3351 (1520) 3285 (1490)4585 (2080)4145 (1884)5390 (2445)

Tractor Model2638 HST2638 HST Cab2645 Shuttle2660 HST Cab2660 PST2670 PST Cab
AG [Front/Rear]7-16 6PR / 11.2-24 4PR7-16 6PR / 11.2-24 4PR8.3 x 16 / 12.4 x 24 9.5 x 16 6PR / 14.9 x 24 6PR9.5 x 20 / 14.9 x 289.5 x 20 / 14.9 x 28
IND [Front/Rear]10-16.5 / 43 x 16-2010-16.5 / 43 x 16-2010-16.5 / 43 x 16-2012 x 16.5 6PR / 16.9 x 24 8PR10.5/80 18 / 18.4 x 24 8PR10.5/80 x 18 / 18.4 x 24

Tractor Model2638 HST2638 HST Cab2645 Shuttle2660 HST Cab2660 PST2670 PST Cab
Model number2638L2638CL2645CL2660CL2660L2670CL
Max lift height (in)101.4101.4101.9115.4115.4115.4
Loader lift capacity [lb (kg)]1634 (741)1634 (741)2041 (926)3122 (1416)3122 (1416)3122 (1416)
Digging depth (in)4.54.54.85.25.25.2
