| Horsepower | 45 HP |
| Transmission | Synchro Shuttle |
| 3-Point Hitch Lift Capacity | 3748 lbs |
| Loader lift capacity | 3245 lbs/1472 kg |
5-Year Limited Powertrain Warranty*
| Horsepower | 55 HP |
| Transmission | Synchro Shuttle |
| 3-Point Hitch Lift Capacity | 3748 lbs |
| Loader lift capacity | 3245 lbs/1472 kg |
5-Year Limited Powertrain Warranty*
Featuring a synchro-shuttle transmission with 12 forward and 12 reverse gears, the 5100 Series excels in swift front loader tasks. Its advanced engine technology ensures superior PTO horsepower with the 540/540E. Benefit from the 540E PTO setting for fuel savings and quieter operation during light work.

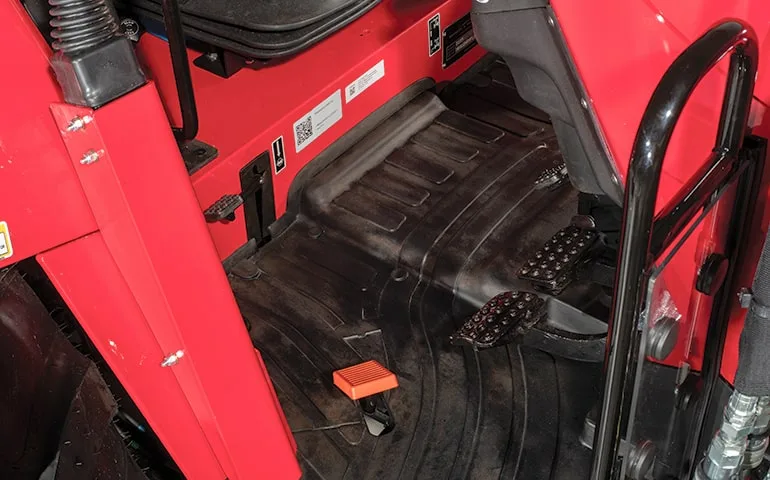

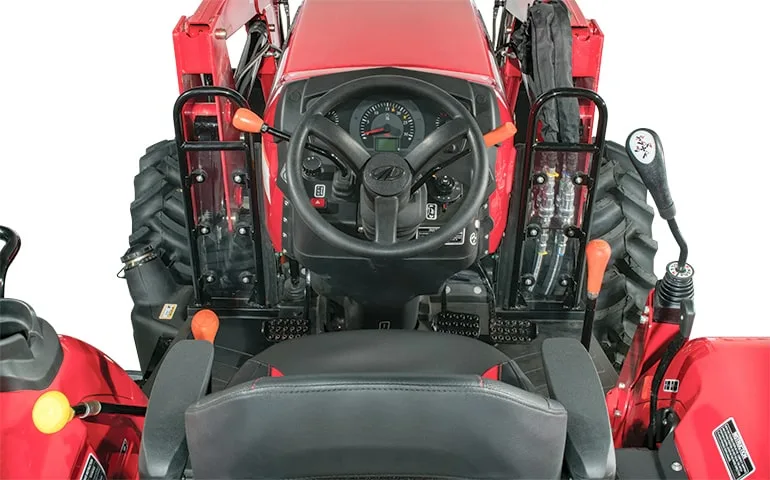

The operator platform features a near-flat floor, anti-slip rubber floor mat, and an adjustable seat with contoured cushions, armrests and a soft-coil suspension. Easy tractor access is provided by a two-step ladder. The power-assisted tilt-steering enhances control and reduces fatigue. The wide, flat fenders prevent mud sling and offer storage space.

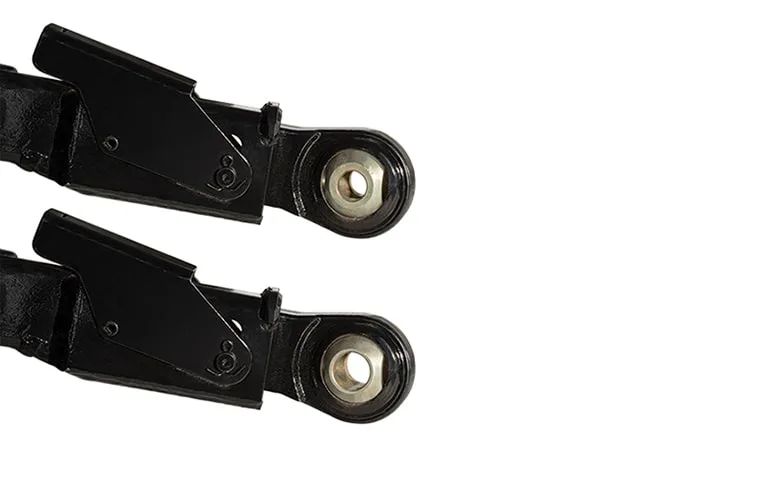

Designed for versatility, these tractors feature, CAT 1 and CAT 2 three-point hitch for various implements, front tow-hook (DIA) and standard, rear clevis hitches, and one remote valves (expandable to two). Achieve low clearance with low-pivot ROPS.

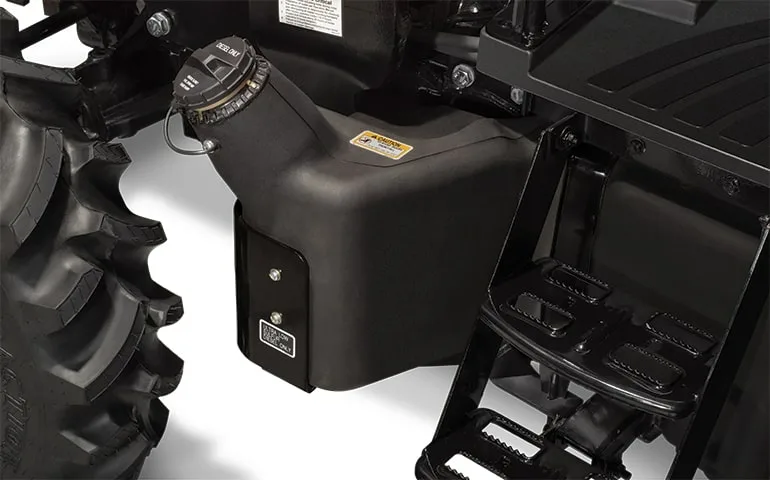

Experience superior functionality with our extensive standard features: ladder with grab rail, retractable seat belt, telescopic stabilizers, flex lower links, lowered frame-protected, ground fill fuel tank, and metal hood for optimal engine protection. Get on and off your tractor with easy to access grab handles
| Tractor Model | 5145 Shuttle | 5155 Shuttle |
|---|---|---|
| Engine type | Four-stroke, direct-injection water-cooled, diesel | Four-stroke, direct-injection water-cooled, diesel |
| Engine HP [kW] @ RPM | 45 (33.5) @ 2300 | 55 (41.0) @ 2300 |
| Displacement [in3 (cc)] | 166.2 (2723) | 166.2 (2723) |
| Number of cylinders | 4 | 4 |
| Fuel tank [Gal (L)] | 16.7 (63.5) | 16.7 (63.5) |
| Bore & stroke [in] | 3.5 x 4.3 | 3.5 x 4.3 |
| Tractor Model | 5145 Shuttle | 5155 Shuttle |
|---|---|---|
| Transmission type | Synchromesh gears w/synchro shuttle | Synchromesh gears w/synchro shuttle |
| Number of speeds | 12 x 12 | 12 x 12 |
| Clutch | Dry dual | Dry dual |
| Max speed (mph) | 17.9 | 17.9 |
| Brakes | Oil immersed | Oil immersed |
| Tractor Model | 5145 Shuttle | 5155 Shuttle |
|---|---|---|
| PTO type | Independent | Independent |
| Rear PTO RPM | 540 @ 2300 / 540E 1725 | 540 @ 2300 / 540E 1725 |
| PTO HP (kW) | 38 (28.3) @ 2300 | 47 (35.0) 2300 |
| Tractor Model | 5145 Shuttle | 5155 Shuttle |
|---|---|---|
| Type | Open center with position and draft control, adjustable lowerlinks with stabilizer | Open center with position and draft control, adjustable lowerlinks with stabilizer |
| Maximum total flow [GPM (L/min)] | 13.3 | 13.3 |
| Total pump output, main (GPM) | 8.7 | 8.7 |
| Total pump output, steering (GPM) | 4.6 | 4.6 |
| 3-Point hitch | Cat I/II | Cat I/II |
| 3- Point hitch lift capacity @24" aft [lb (kg)] | 3748 (1704) | 3748 (1704) |
| Tractor Model | 5145 Shuttle | 5155 Shuttle |
|---|---|---|
| Battery | 12 volt, 96 amp hours | 12 volt, 96 amp hours |
| Alternator | 12 volt, 90 A | 12 volt, 90 A |
| Tractor Model | 5145 Shuttle | 5155 Shuttle |
|---|---|---|
| Overall length [in (mm)] | 136.6 (3470) | 136.6 (3470) |
| Wheelbase [in (mm)] | 77.9 (1979) | 77.9 (1979) |
| Turning radius [ft (m)] | 10.8 (3.3) | 10.8 (3.3) |
| Overall width [in (mm)] | 74.8 (1900) | 74.8 (1900) |
| Overall height [in (mm)] | 60.62 (1540) | 136.6 (3470) |
| Minimum ground clearance [in (mm)] | 16.9 (430) | 16.9 (430) |
| Weight [lb (kg)] | 5579 (2536) | 5579 (2536) |
| Tractor Model | 5145 Shuttle | 5155 Shuttle |
|---|---|---|
| AG [Front/Rear] | 9.5 x 24 / 14.9 x 28 | 9.5 x 24 / 14.9 x 28 |
| IND [Front/Rear] | 10.5 / 80 x 18 / 16.9 x 24 | 10.5 / 80 x 18 / 16.9 x 24 |
| Tractor Model | 5145 Shuttle | 5155 Shuttle |
|---|---|---|
| Model number | 5155-4L | 5155-4L |
| Max lift height (in) | 122 | 122 |
| Loader lift capacity [lb (kg)] | 3245 lbs/1472 kg | 3245 lbs/1472 kg |
| Digging depth (in) | 8.7 | 8.7 |
